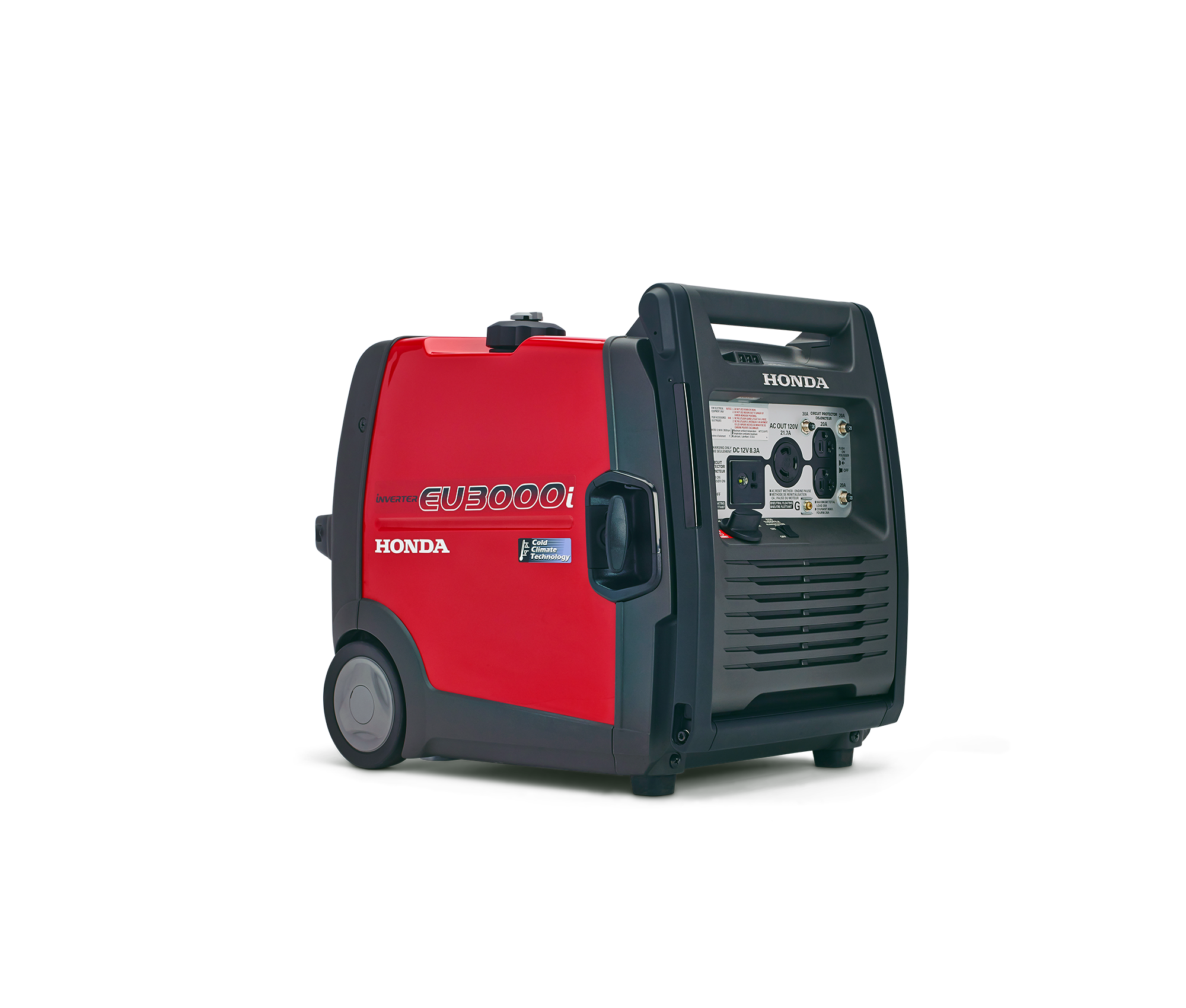

Ultra-Quiet 3000i

Generator Type

Inverter

Maximum AC Output (Watts)

3,000

AC Voltage Available

120

Maximum Continuous AC Output (Watts)

2,600

Max. Rated AC Amperage @ 120 V / 240 V

21.7 / -

Ground Fault Circuit Interrupter (GFCI)

N/A

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard

DC Output Volts / Amps

12 / 8.3

Common Duplex Receptacle Specifications

21.7 amps/120 VAC continuous is available as combined total from these two AC receptacles. Maximum of 20 amps is available from a single receptacle.

DC Receptacle Specifications

8.3 amps/12 VDC is available from this receptacle. Important Note: AC and DC output cannot be used simultaneously. DC system uses floating N (Neutral) type.

DC Charging Cable

Standard

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications

This receptacle (NEMA # L5-30R) will supply 21.7 amps at 120 VAC continuously

Engine Type

Honda GX160T2 OHV, 4-stroke, air-cooled

Displacement

163 cc

Starting System

Manual recoil

Low Level Oil Alert System

Standard

Auto Throttle

Eco-Throttle standard

Remote Start Capability

No

Fuel Tank Capacity

5.9 litres (1.30 Imp. gal.)

Transport Wheels

Standard

Lifting Hook

N/A

Battery

N/A

Approximate Running Time (hrs.) / Tankful

3.5** / 7.7***

Rated Fuel Consumption (litres/hr)

1.68**

Noise Level dB(A) (1.5 m to 7 m)

64** / 57***

Length (Without Handles and Wheels)

622 mm (24.5 in.)

Length (With Handles and Wheels)

N/A

Width (Without Handles and Wheels)

379 mm (14.9 in.)

Width (With Handles and Wheels)

N/A

Height (Without Lift-Hook)

489 mm (19.3 in.)

Height (With Lift-Hook)

N/A

Dry Weight

35.2 kg (77.6 lbs.)

Cold Climate Technology

Standard

** / ***

**At max. rated output (continuous) in Watts.
***At 25% rated output (continuous) in Watts.
