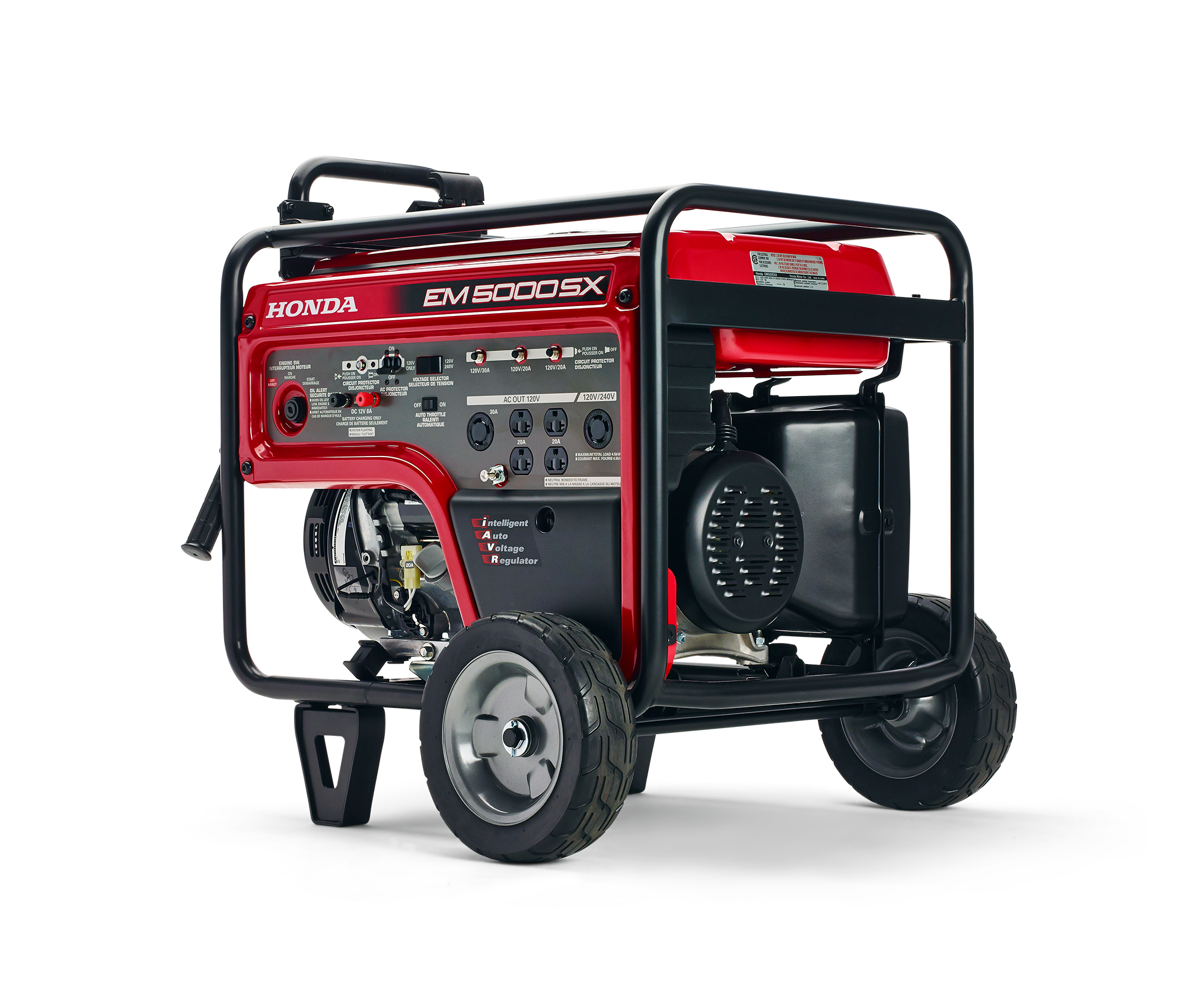

Electric Start 5000

EM5000S3CT2

The Electric Start 5000 has premium features for demanding commercial usage (non-GFCI applications) and reliable home backup use.

Selling Price

^$3,079

add

Add to Compare

Buy Now

< Switch View >

Features

check

Portable power with premium features and traditional Honda durability and performance

check

5,000 watts maximum AC output

check

Powerful, easy-start Honda iGX390 commercial-grade engine

check

Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load

check

12 VDC battery charging capability with optional charge cable

check

Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage

check

Cold Climate Technology^TM aids continuous running in cold weather conditions

check

Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)

check

Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.

Specifications

Expand All

add

Electrical

Generator Type: Brush type

Maximum AC Output (Watts): 5,000

AC Voltage Available: 120 / 240

Maximum Continuous AC Output (Watts): 4,500 7,000 (iAVR)

Max. Rated AC Amperage @ 120 V / 240 V: 37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)

Ground Fault Circuit Interrupter (GFCI): N/A

Frequency (Hertz): 60

Automatic Voltage Regulator: Standard iAVR (Intelligent Automatic Voltage Regulator)

DC Output Volts / Amps: 12 / 8

Common Duplex Receptacle Specifications: 37.5 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles.

DC Receptacle Specifications: 8 amps/12 VDC is available from these +/- thumb screw terminals. Important Note: AC and DC output can be used simultaneously on this series only. DC system uses floating N (Neutral) type.

DC Charging Cable: Optional (P/N 32650-825-015)

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5 kVA) at 240 VAC continuously.

Engine

Engine Type: Honda iGX390T2 OHV, 4-stroke, air-cooled

Displacement: 389 cc

Starting System: Electric/recoil

Low Level Oil Alert System: Standard

Auto Throttle: Standard

Remote Start Capability: Optional

Fuel Tank Capacity: 23.5 litres (5.17 Imp. gal.)

Additional Information

Transport Wheels: 2 Wheel standard

Lifting Hook: Optional (P/N 06810-Z22- A30ZA)

Battery: Standard (P/N 31500-MCR-J01)

Approximate Running Time (hrs.) / Tankful: 8.1** / 11.2****

Rated Fuel Consumption (litres/hr): 2.90**

Noise Level dB(A) (1.5 m to 7 m): 72**

Length (Without Handles and Wheels): 681 mm (26.8 in.)

Length (With Handles and Wheels): 1,043 mm (41.1 in.)

Width (Without Handles and Wheels): 530 mm (20.9 in.)

Width (With Handles and Wheels): 706 mm (27.8 in.)

Height (Without Lift-Hook): "719 mm (28.3 in.)

Height (With Lift-Hook): 773 mm (30.4 in.) optional lift hook

Dry Weight: 102.2 kg (225.3 lbs.)

Cold Climate Technology: Standard

** / ***: **At max. rated output (continuous) in Watts.
****At 50% rated output (continuous) in Watts.

Warranty

Consumer or residential use:: 36-month comprehensive warranty

Commercial use:: 36-month comprehensive warranty

+ Honda Plus Warranty

Honda has established a brand synonymous with reliability. For increased peace-of-mind, learn more about Honda Plus Warranties.

Honda Plus Warranty Pricing

+ 12 Months	+ 24 Months	+ 36 Months
$198	$288	$378

Honda Plus Warranty Pricing

+ 12 Months	$198
+ 24 Months	$288
+ 36 Months	$378

See Full Warranty Information
