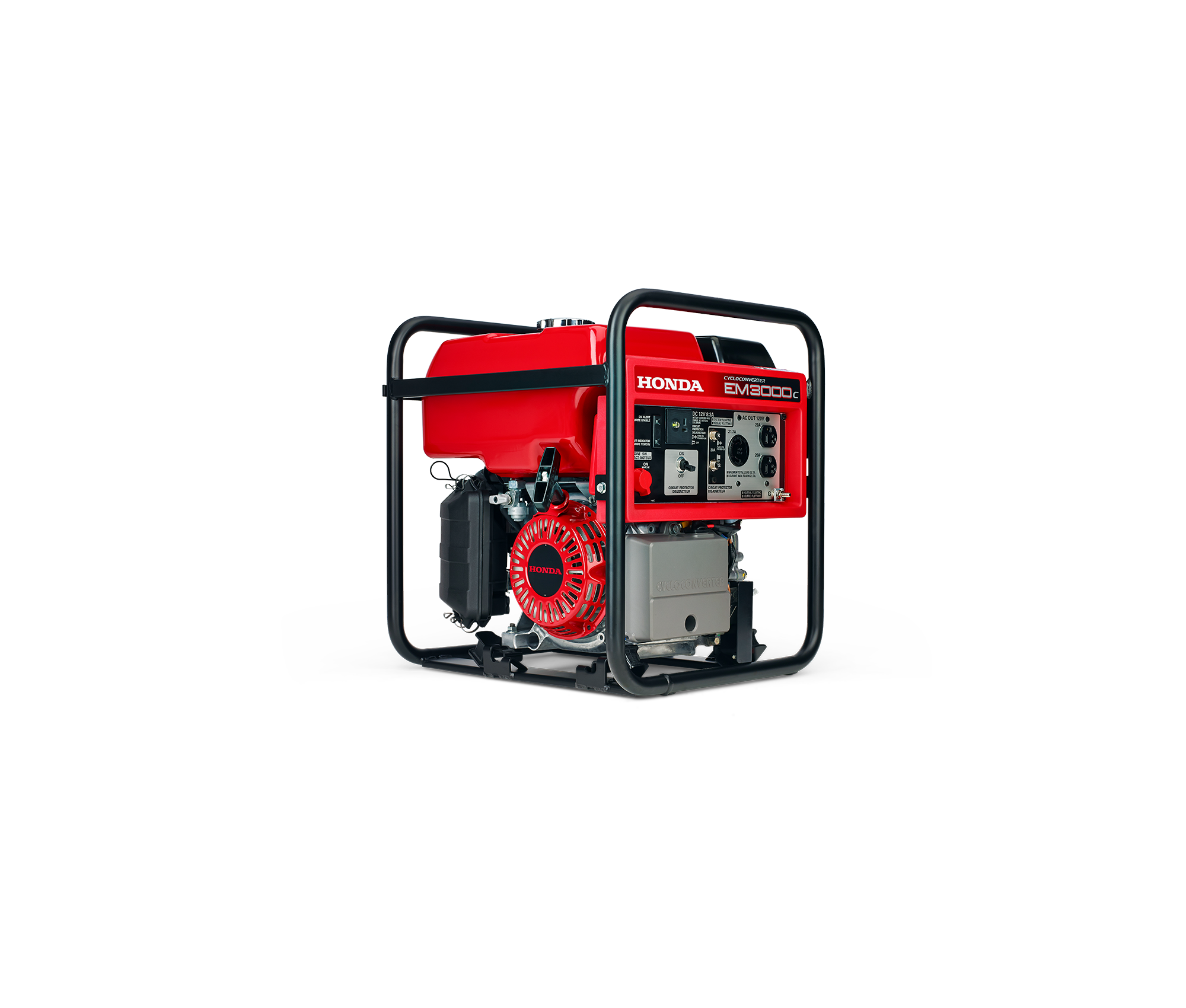

Cyclo-Converter 3000

Generator Type

Cycloconverter

Maximum AC Output (Watts)

3,000

AC Voltage Available

120

Maximum Continuous AC Output (Watts)

2,600

Max. Rated AC Amperage @ 120 V / 240 V

21.7 / -

Ground Fault Circuit Interrupter (GFCI)

N/A

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard

DC Output Volts / Amps

12 / 8.3

Common Duplex Receptacle Specifications

21.7 amps/120 VAC continuous is available as combined total from these two AC receptacles. 20 amps is maximum available from a single receptacle.

DC Receptacle Specifications

8.3 amps/12 VDC is available from this receptacle. Important Note: AC and DC output cannot be used simultaneously. DC system uses floating N (Neutral) type.

DC Charging Cable

Optional (P/N 32650-892-010AH)

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications

This receptacle (NEMA # L5-30R) will supply 21.7 amps at 120 VAC continuously.

Engine Type

Honda GX200T2 OHV, 4-stroke, air-cooled

Displacement

196 cc

Starting System

Manual recoil

Low Level Oil Alert System

Standard

Auto Throttle

N/A

Remote Start Capability

No

Fuel Tank Capacity

9.7 litres (2.13 Imp. gal.)

Transport Wheels

N/A

Lifting Hook

N/A

Battery

N/A

Approximate Running Time (hrs.) / Tankful

6.1**

Rated Fuel Consumption (litres/hr)

1.58**

Noise Level dB(A) (1.5 m to 7 m)

68**

Length (Without Handles and Wheels)

445 mm (17.5 in.)

Length (With Handles and Wheels)

N/A

Width (Without Handles and Wheels)

402 mm (15.8 in.)

Width (With Handles and Wheels)

N/A

Height (Without Lift-Hook)

480 mm (18.9 in.)

Height (With Lift-Hook)

N/A

Dry Weight

31 kg (68.3 lbs.)

Cold Climate Technology

Standard

** / ***

**At max. rated output (continuous) in Watts.
****At 50% rated output (continuous) in Watts.
